ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester

Brand Name : DAXIAN

Model Number : DX8427

Certification : IEC60587-2007, ASTM D2303

Place of Origin : China

MOQ : One set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5 sets per month

Delivery Time : 5-8 work days

Packaging Details : Wooden case

Usage : Silicone rubber Corrosion resistance testing machine

Standards : IEC60587-2007, ASTM D2303

Power : AC 220V/50HZ

Drop Height : 30mm ~ 40mm Adjustable

Warranty : 12 Months

Test Voltage : 100~6000V Adjustable

Sample : insulator

Machine name : track and errosion test machine

Contact Now

DX8427 Electrical Insulating Materials Tracking An...

IEC60587 ASTMD2303 Electrical Tracking Mechanism

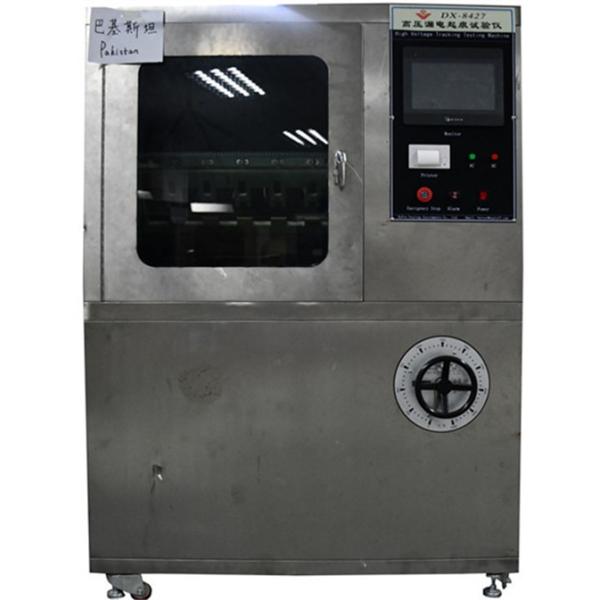

ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester

Model: DX8427

Technical Description:

The mechanism of electrical impingement on the epoxy resin insulating material using a high voltage of 3.5 kV AC with a frequency of 50 Hz causes the surface of the epoxy resin insulating material to burn.

Standard:


IEC60587-2007, ASTMD2303.



Parameters:

Name DX8427 High Voltage Tracking Index Tester

Box

≥ 0.5 cubic meters

Drop size

44 to 50 drops / cm3

Power supply

AC 220V, 50Hz

Drip height

30mm ~ 40mm adjustable

Electrode Pressure

1.00N±0.05N

Performance Index:
a. Instrument Dimensions: 1500L*1050W*2000H (mm);
b. Operationg Room Size: 1100L*900W*950H (mm);
c. Electrode: thickness: 0.5mm; material: stainless steel;
d. Gape of Electrade: 50.0mm±0.1；
e. Testing Voltage: AC: 0V-6000V no rate adjustable;
DC: 0V-8400V no rate adjustable;
f. Testing Voltage power: 6000W;
g. Liquid Flow Range: 0.0016-1.5ml/min optional setting;
h. Dropping liquid Precision: 0.5%;
i. Stop droping liquid and turn off the Voltage Output if the loop current is more than 60mA;
g. Testing time: 0-10 hours, setting freely;

ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester
