1500W Non Combustibility Testing Machine , Flammability Test Chamber

Non Combustibility Testing Machine

Non Combustibility Testing Machine Scope of application:

It is mainly applicable to the test method for judging the burning performance of building materials under specified conditions. It is applicable to testing the flammability classification of Class A fireproof materials in GB8624 flammability classification of building materials.

Non Combustibility Testing Machine Standards:

It is developed in accordance with the technical indicators and requirements specified in the national standard IS01182:2002 Reaction test of building materials to fire - Non flammability test.

Non Combustibility Testing Machine Performance index:

1. Temperature measurement accuracy: ± 1 ℃;
2. Temperature control accuracy: ± 3 ℃;
3. Initial equilibrium temperature in the furnace: (750 ± 5) ℃, temperature drift within 10 minutes ≤ 2 ℃;
4. Temperature stabilization time in furnace: stabilization time from room temperature to 750 ℃ ≤ 1 hour;
5. Heating furnace tube size: inner diameter (75 ± 1) mm, height (150 ± 1) mm;
6. The sample is cylindrical: diameter 45mm, height (50 ± 3) mm;
7. Floor area: 1 square meter;
8. Temperature probe: nickel chromium nickel silicon armored thermocouple with outer diameter of 1.5mm and wire diameter of 0.3mm;
9. Power regulation: 0~1200 V adjustable;
10. Condition adjustment: Before the test, the sample must be adjusted for (20~24) h in a ventilated drying oven with a temperature of (60 ± 5) ℃, and then placed in a drying dish to cool to room temperature. Before the test, the mass of each group of samples shall be weighed to the nearest 0.01g.
11. Probe test points: test chamber, test piece center, test piece surface, furnace wall.

Non Combustibility Testing Machine Equipment structure:

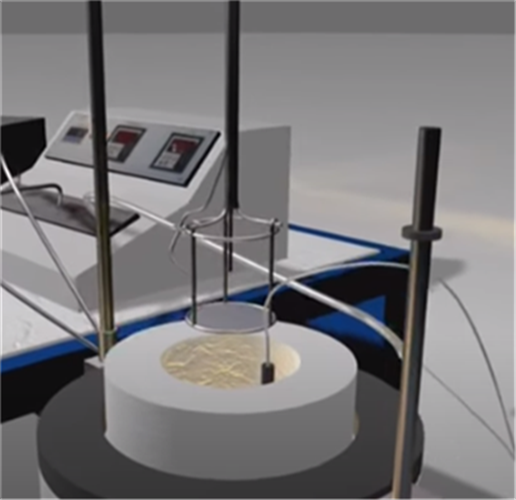

- This machine is composed of heating furnace, control box, computer and air current stabilizer.
- The combustion box and control box are made of high quality SUS304 stainless steel, with beautiful appearance. The internal parts are made of SUS304 stainless steel, with good rust resistance.

Non Combustibility Flammability Test Chamber

1500W Non Combustibility Testing Machine

Non Combustibility Testing Machine

1500W Non Combustibility Testing Machine , Flammability Test Chamber Images
